Square D

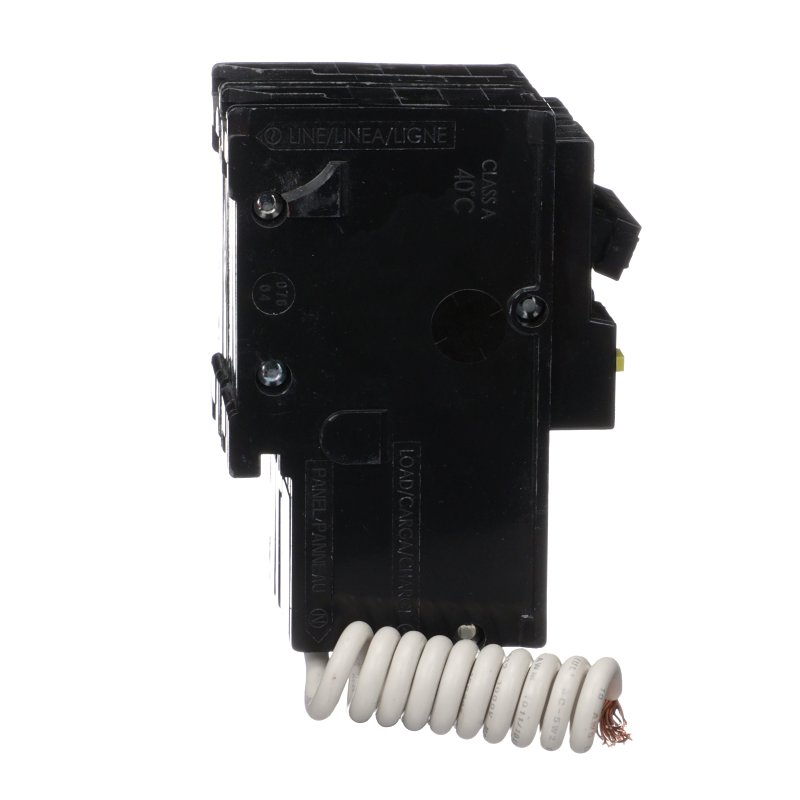

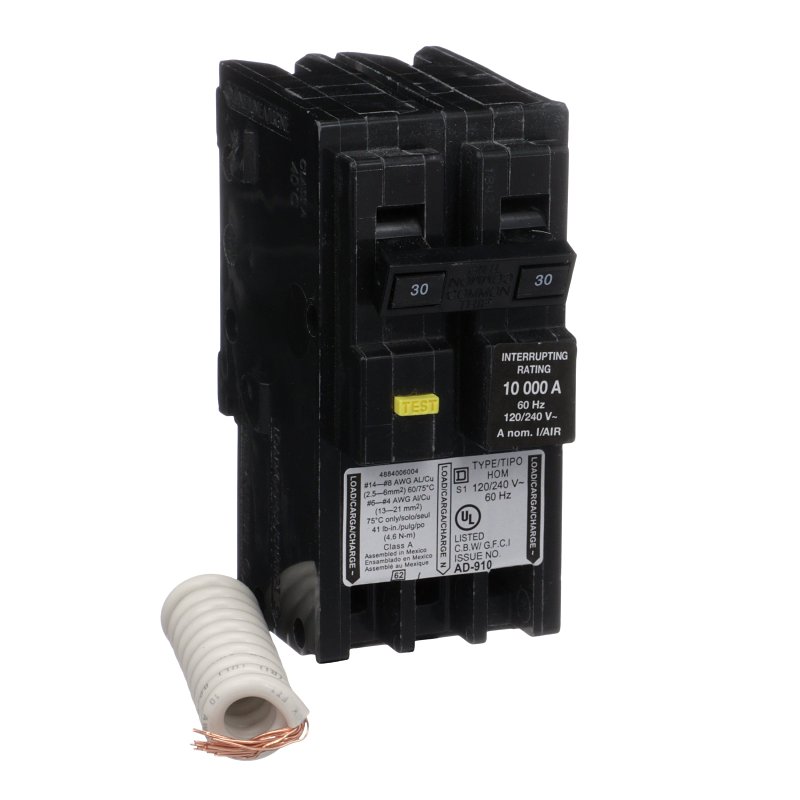

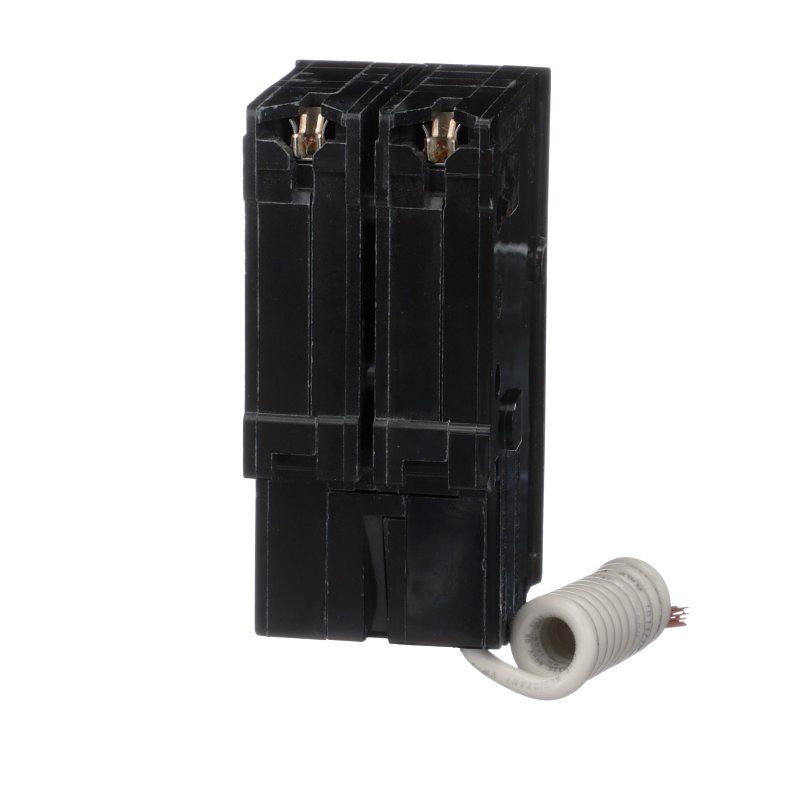

Square D Homeline HOM230GFIC Miniature Circuit Breaker, GFCI, 30 A, 2-Pole, 120/240 V, Plug-In Mounting
- Current Rating: 30 A
- Dimensions: 3.13 in H x 2 in W x 2.98 in D
- Interrupt Rating: 10 kA
- Mounting Type: Plug-In
- Number of Phases: 1
- Model #: HOM230GFIC
- UPC #: 785901152873
- SKU: 7576069
Your shopping list will be used for pickup in-store
Product Details
Homeline miniature circuit breakers are engineered and designed for fast installation and great circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR-rated. This two-pole circuit breaker with plug in mounting is rated 30 A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 mA or more. The electrical connection is a clamp terminal that will accept two wires. The clamp terminal will accept a wire range of 14 to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 in, a width of 1 in and depth of 2.98 in. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is shipped in a clam package.Item Specifications
| Current Rating | 30 A |
|---|---|
| Dimensions | 3.13 in H x 2 in W x 2.98 in D |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug-In |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Number Of Spaces | 2 |
| Operating Temperature | 104 deg F |
|---|---|
| Suitable for | Homeline Electrical Panel and CSEDs with Two Spaces |
| Terminal Type | Screw Clamp |
| Trip Sensitivity | 6 mA |
| Type | GFCI |
| Voltage Rating | 120/240 V |
| Wire Size | 12 to 4 14 to 6 AWG |
